2 indictor set for working both sides of the machine at the same time (must be calibrated before each use!):
-movement of one side always affects both sides, so indicating both sides is critical
-indicating from both sides is much quicker than moving from side to side over and over
-indicator bases sit on the steel underneath the conveyor, with the conveyor riding in the throat, for much more accurate measurements than the competitive indicators
Mitutoyo Digimatic indicators:
-accurate to .0005”
-work in imperial or metric measurements
-indicator face rotates 330 degrees for working on bottom sanders
-indicator has SPC output to use with Accurate Technologies remote displays
-roller contact point for low wear and easy movement under heads
-reverse indicator operation means the number goes lower as the indication height lowers (less confusion!)
Indicator base:
-heat treated base for long wear
-magnetic so calibration of bottom sanding machine is as easy and accurate as any top sander
-chamfered to allow easy movement under the conveyor
-2” deep throat for reaching past the end of the drum
-base/stand are extremely rigid for accurate measurements when moving back and forth under each contact surface
Operating handle:
-36” Aluminum extended handle for reaching deep into large machines
-handle swivels vertically to avoid creating pressure on the base
-breaks down for storage.
Price:

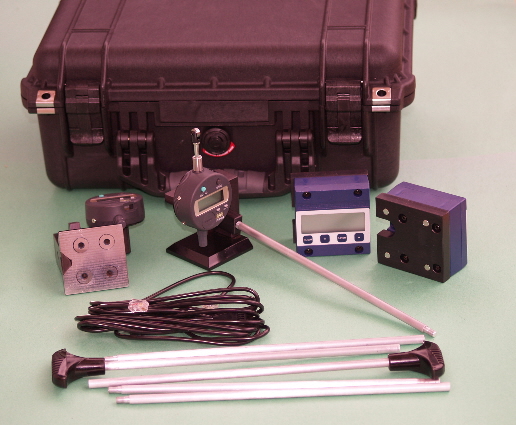

As seen in the picture $2500.
With Accurate Technologies remote displays/60” cord.
