Wrenches for Microtech knives
- Small- fits handle screws that have 3 holes

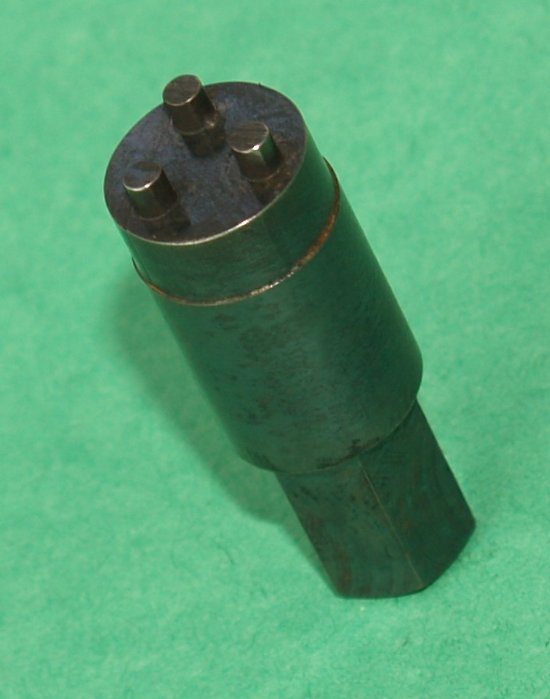

- Medium- fits handle screws that have 4 holes ( If your knife was made after 2006 it may not have the center hole.) If you can fit another hole in the middle of the outer 3, it is a medium.If the screw heads are domed, specify a domed head wrench!!!
- Large- fits the pivot screw on MT side openers and some clip screws.
- New size for the combat troodon available in September 2010.
Current production wrenches have no center pins so they can be used on the new style screws.
Ask about the tiny springs in the OTF knives if you need any.
Contact www.PSDproducts.com for titainium screws.
All
wrenches are built with ¼” hex ends and can be dropped into most any
standard size hex end screw driver handle. A short driver is recommended to avoid shearing the screws.
If you encounter a tight screw, it may have thread locker on it. It is best to heat it with the tip of a soldering iron to melt the thread locker.
(Or put it in your oven at 250* F for a while).
We
normally have no idea what size Microtech is using on their newer knives. If you are unsure of what size you need, examine the knife screws. Large is normally used for the pivot and belt clips. Outside diameters of all screws may vary on different styled Microtech knives.
Prices:
Small, Medium and Large are $15, Domed and extra large (fixed blade) are $20.
Discounts available for orders of 50 complete sets or more. (Dealers please inquire.)
Shipping is an additional fee.
Choose between $2.00 for snail mail or $5.00 for 3 day USPS priority mail. (recommended)
Cost of shipping outside the USA may vary.
E-mail
the size(s) and quantities you desire to purchase. Include your full name and shipping address to reserve your screwdriver tips before payment arrival. The screw driver tips will be shipped within 1-2 business days of received payment, usually the next day.
Method of payment accepted: Money order, Paypal, personal check, (checks are held until they clear) Credit cards can be used thru Paypal. At your request an invoice with instructions will be emailed to you.
Payment payable to :
Model and Toolmaking
6645 Second Avenue
Andover, Ohio 44003
(440)293-4328, Email address: matt@modelandtool.com |

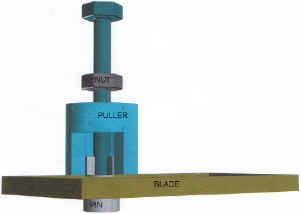

blade pin puller
To remove the blade from the MT Scarab the pin must be pulled out. Please inquire if you need a puller made.
They can be custom made to your requirements for $15.00 plus S&H.
CONICAL SPRINGS & OTHER WRENCHES
I have theses conical springs available for $3.00 ea.. They are good to have on hand if you take apart an OTF._________________________________________________________________________________
The wrench below is an XL wrench. It fits the handle screws of the fixed blades. They are $20 each. Below it you will see a domed screw wrench to fit screws that are not flat but are raised to give a better grip. Note that the face of the wrench is concave. Due to the extra work involved these are $20 each.
|
|
|
|
